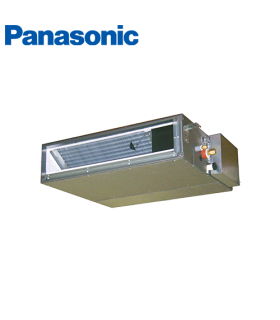

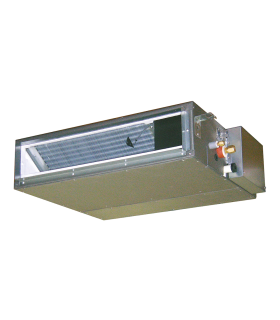

Unitate interioara VRF Panasonic Duct Slim 1.5 - 5.6 kW

M1 TYPE
SLIM VARIABLE STATIC PRESSURE HIDE AWAY CONCEALED DUCT

The ultra slim M1 type is one of the leading products of its type in the industry. With a depth of only 200 mm it provides greater flexibility and can be used in far more applications. In addition, its high-efficiency and extremely quiet sound levels make it very popular with many users, including hotels and small offices.

Technical focus

· Ultra-slim profile: 200mm for all models
· DC-Fan motor greatly reduces power consumption
· Ideal for hotel application with very narrow false ceilings
· Easy maintenance and service by external electrical box
· 40Pa static pressure enables ductwork to be fitted.
· Includes drain pump

Air Outlet & Inlet Plenum

Ultra-slim profile for all models

Drain pump with increased power!

By adoption of a high-lift drain pump, the drain piping rise height can be increased to 785mm from the lower surface of the body.
