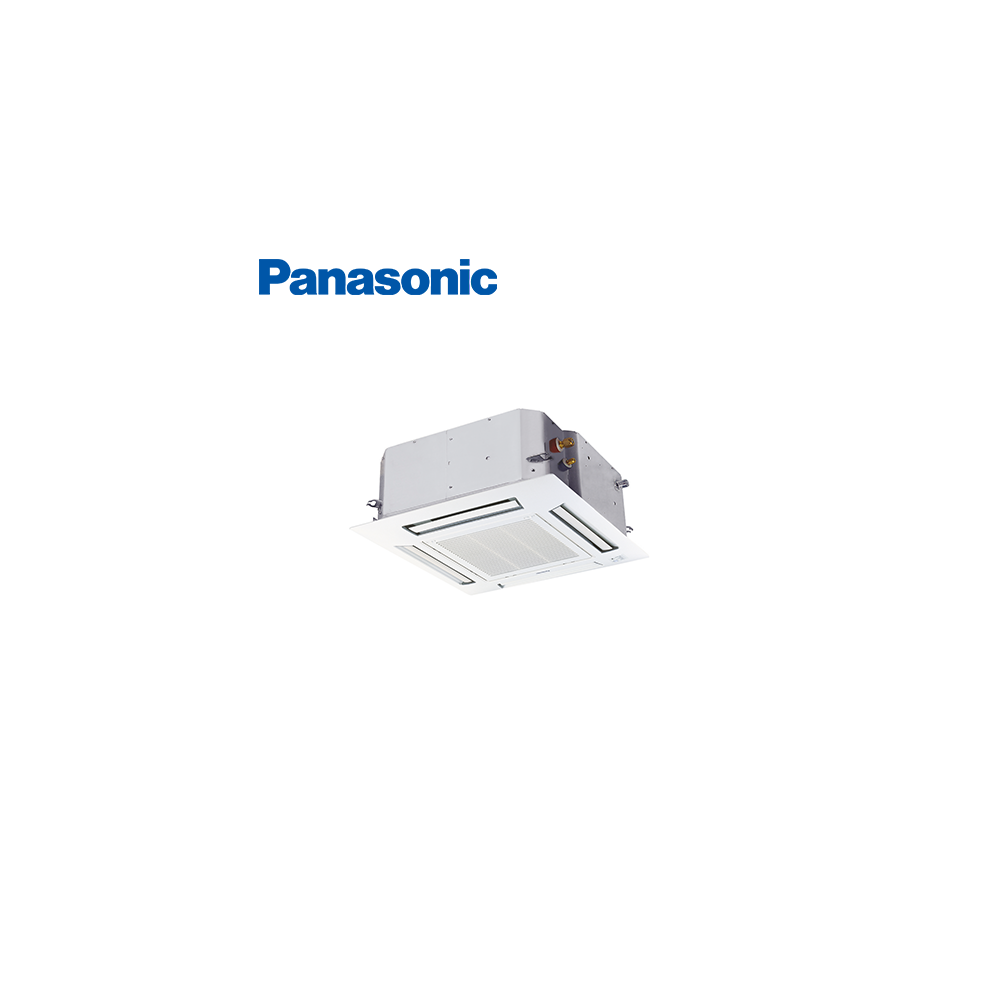

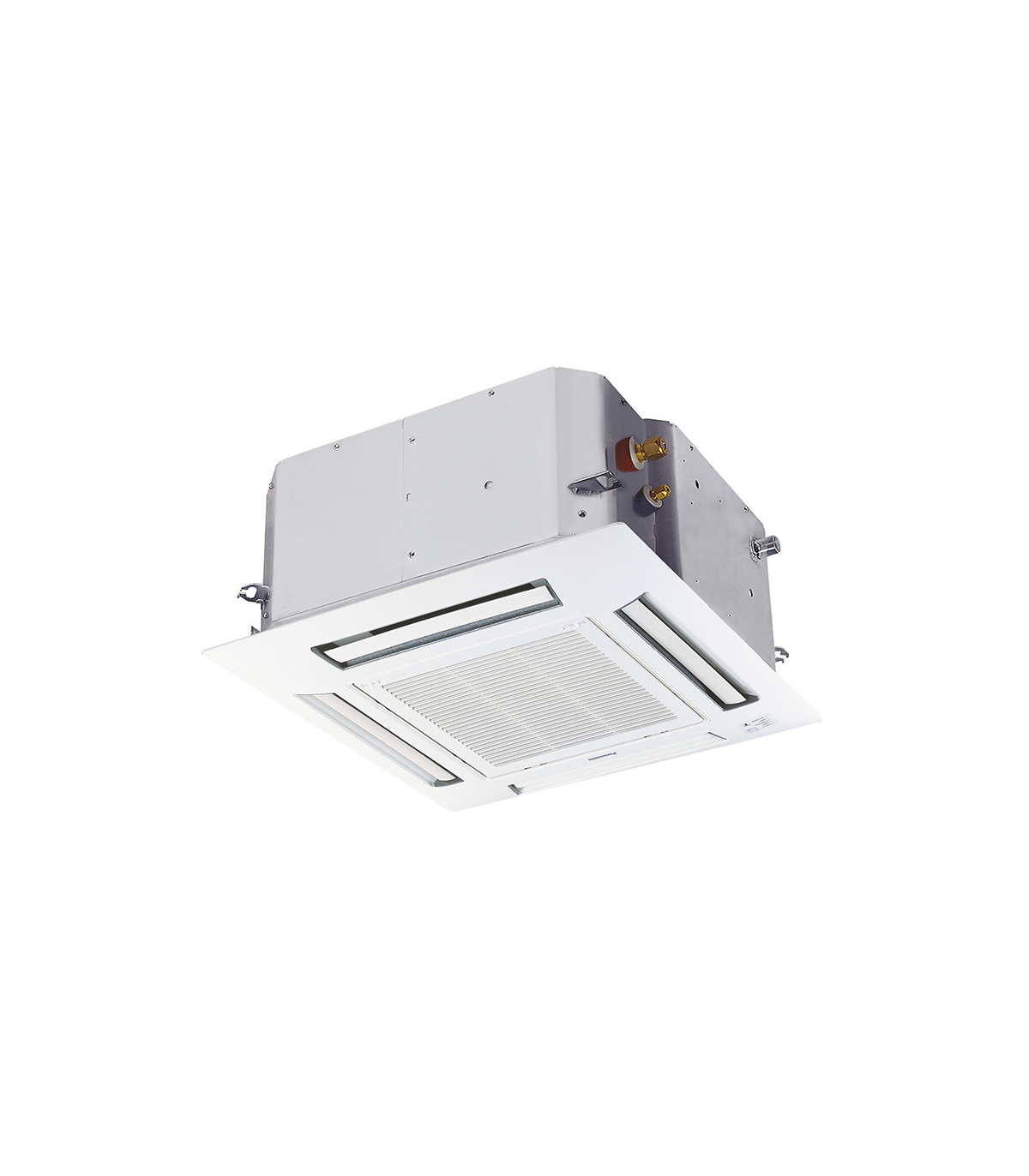

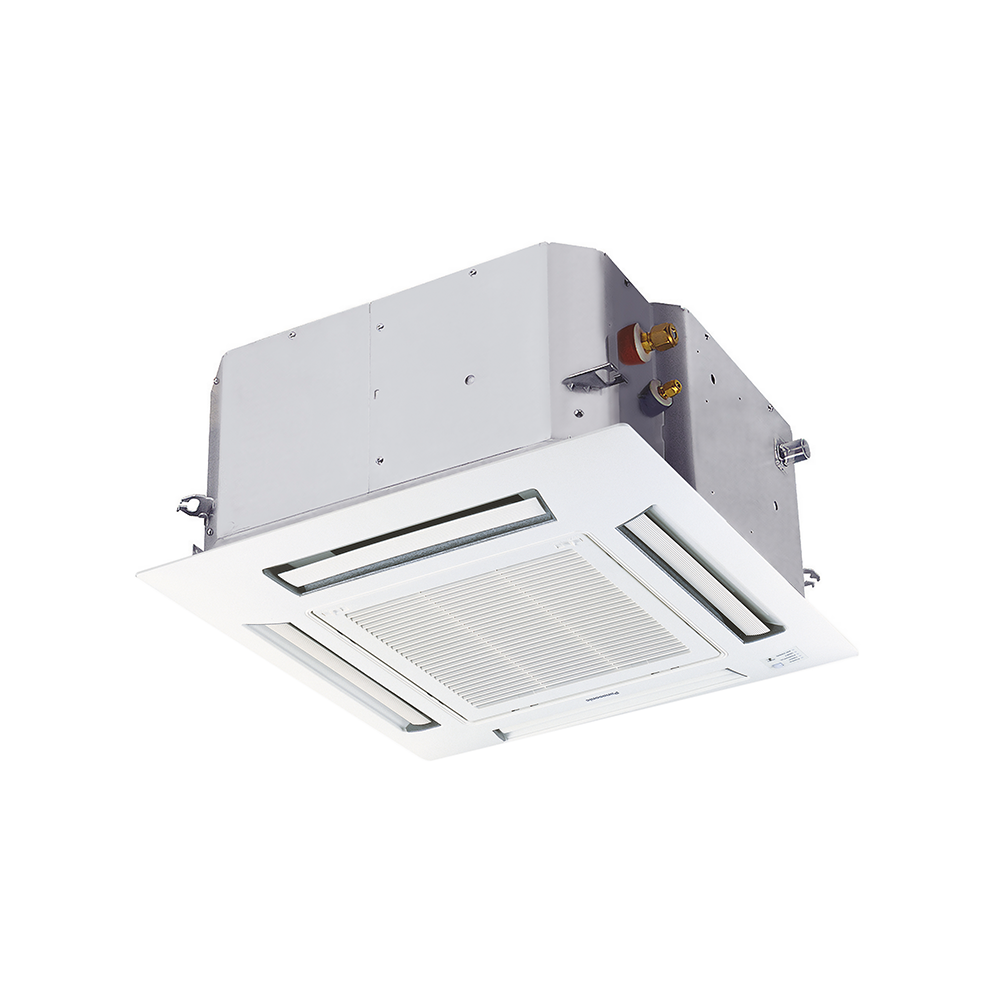

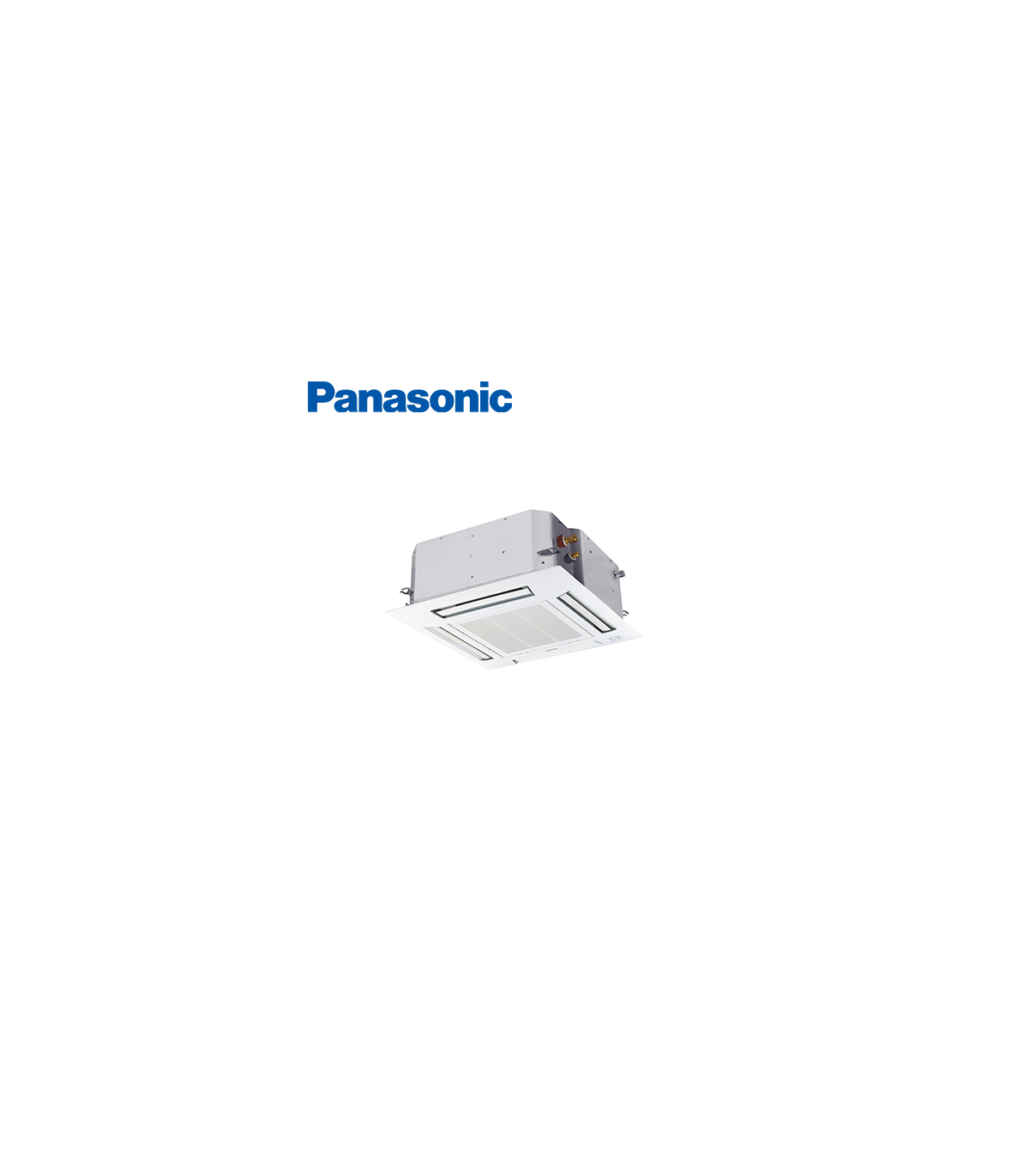

Unitate interioara VRF Panasonic Caseta 60x60 4 directii 1.5 - 5.6 kW
Descriere
Y2 TYPE
4 WAY 60x60 CASSETTE MINI
SEMI CONCEALED
Designed to fit exactly into a 600 x 600mm ceiling grid without the need to alter the bar configuration, the Y2 is ideal for small commercial and retrofit applications. In addition, the improvements to efficiency make this one of the most advanced units in the industry.
Technical focus
· Mini cassette fits into a 600 x 600mm ceiling grid
· Fresh air knock out
· Multidirectional airflow
· Powerful drain pump gives 850mm lift
· Turbo fans and heat exchanger fins with improved design
· DC-Fan motors with variable speed, new heat exchangers, etc. ensure an efficient power consumption
Special designed flap
The flap can be removed easily for washing with water.
A drain height of approximately 850mm from the ceiling surface
The drain height can be increased by approximately 350mm over the conventional value by using a high-lift drain pump, and long horizontal piping is possible.
A lightweight unit at 18,4kg the unit is also very slim with a height of only 288mm, making installation possible even in narrow ceilings.
Anti-Mould Long-Life Air Filter
Anti-mould and anti-bacteria washable filter ensures clean, healthy air.
