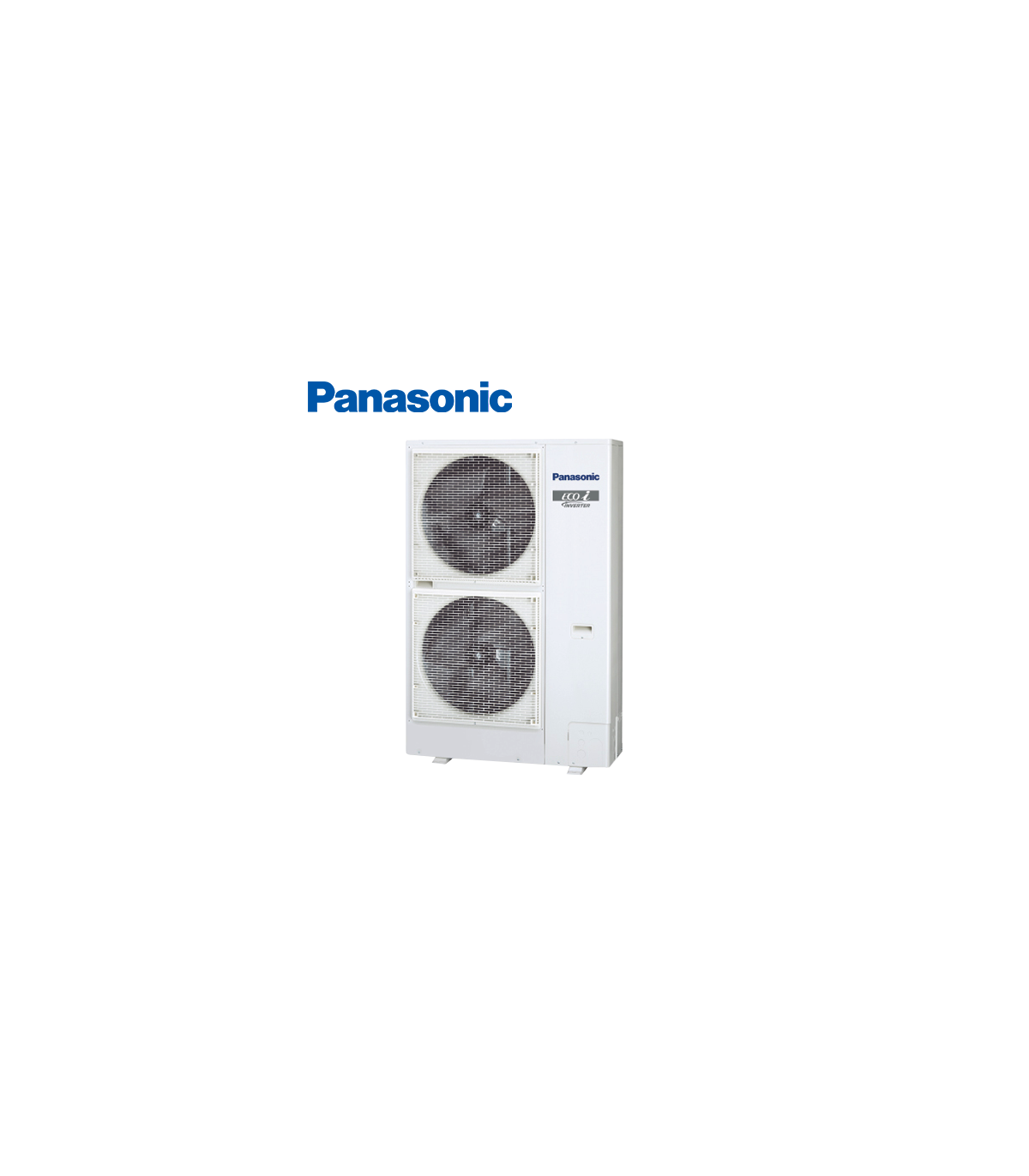

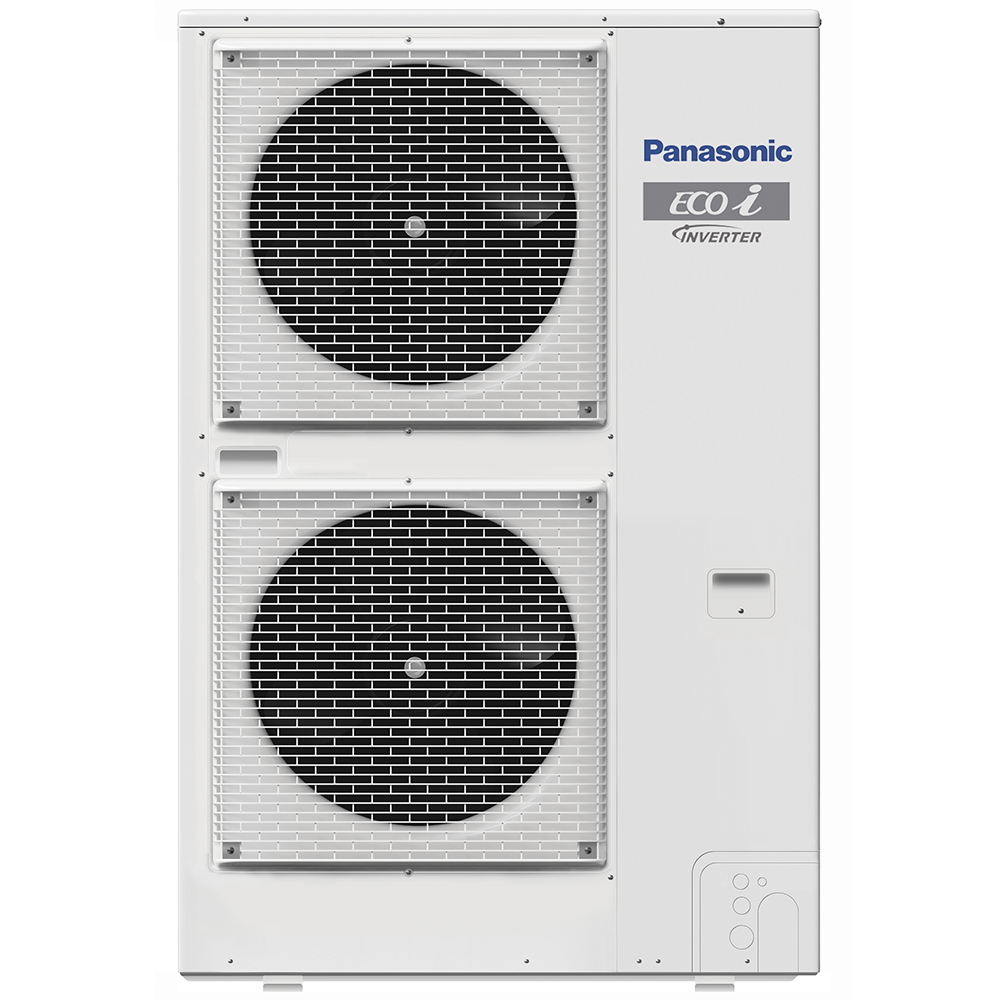

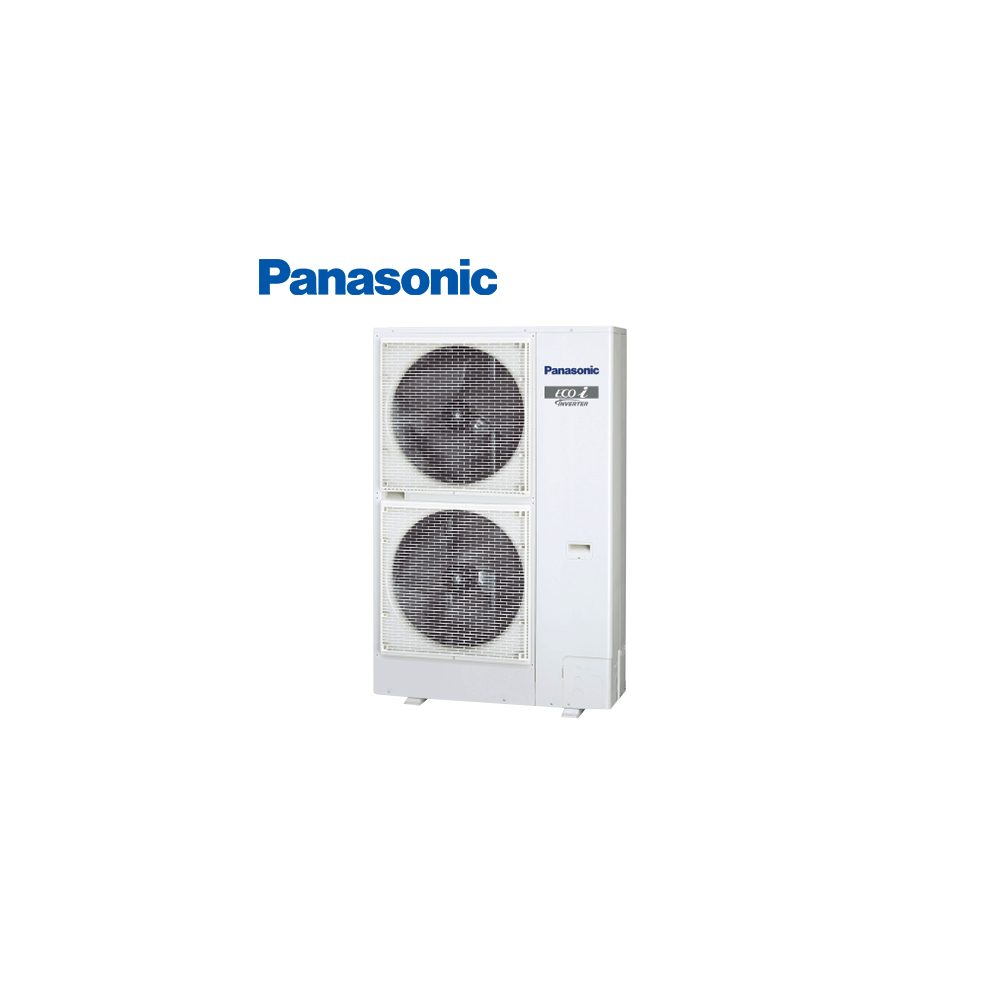

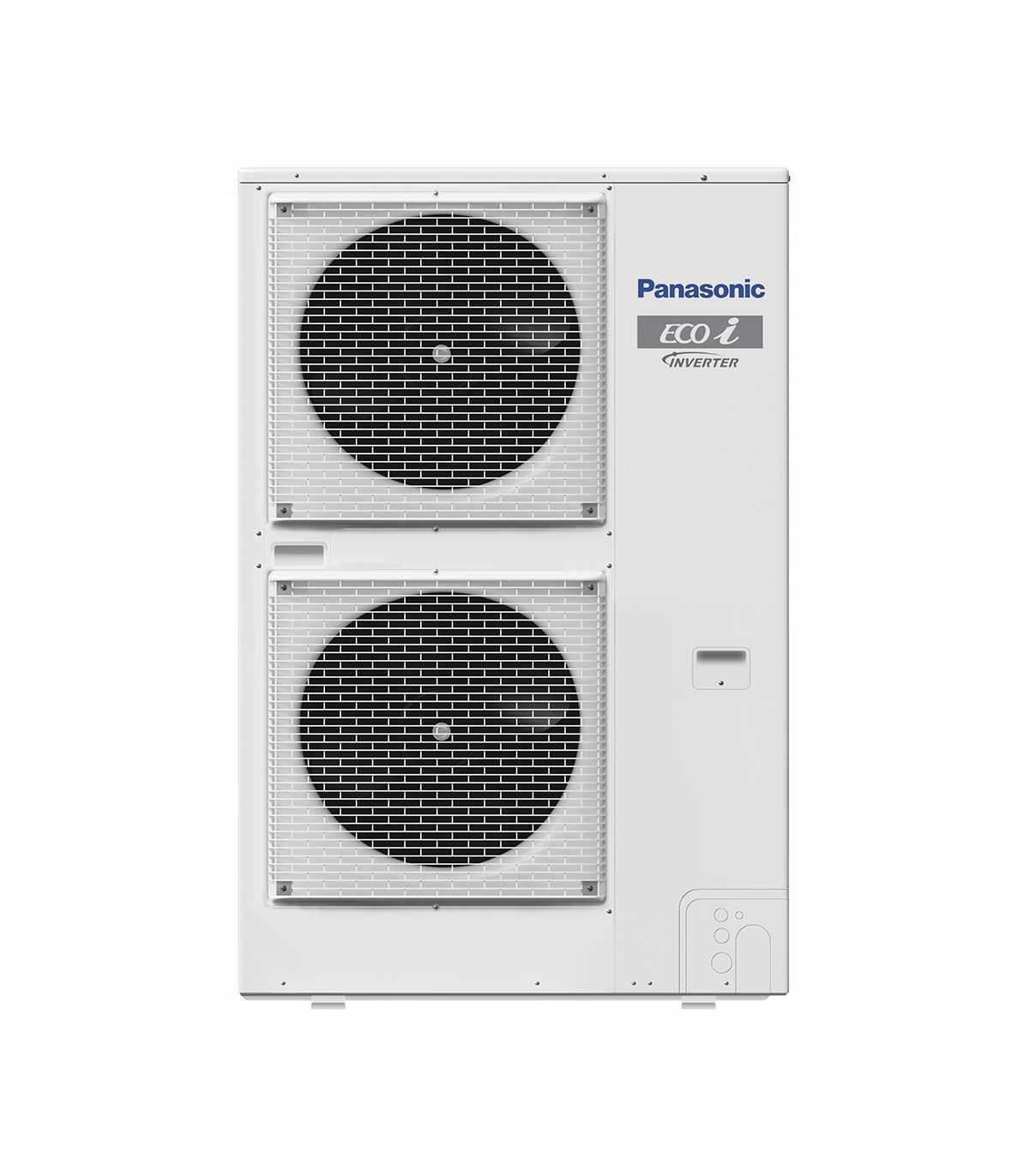

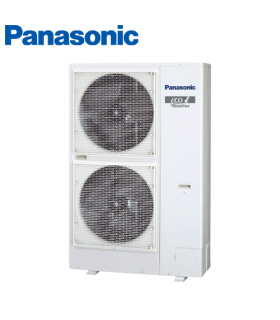

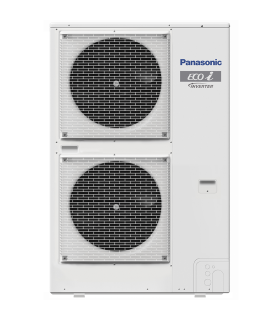

Unitate exterioara VRF Panasonic MINI ECOi High Efficiecy 8 - 10 HP

Unitate exterioara VRF Panasonic

Citeste mai mult Arata mai putin
cod: 8-10 HP
Indisponibil
Anunță-mă când este disponibil
Informatii suplimentare si pareri Unitate exterioara VRF Panasonic MINI ECOi High Efficiecy 8 - 10 HP
Descriere

Descriere

desc_ue_vrf_panasonic_mini_ecoi_8_10hp.p

MINI ECOi
HIGH EFFICIENCY 8-10HP

Panasonic’s new Mini VRF system combines a high performance to position itself as one of the most compact and powerful VRF systems available within the European market.

For light commercial use

Panasonic’s Mini ECOi, the 2-Pipe heat pump small VRF system, is specifically designed for the most demanding applications. Offering between 12,1kW and 15,5kW cooling capacity in 3 sizes and up to 9 indoor units connected, the Mini ECOi sets standards of performance and flexibility. Utilising R410A and DC inverter technology, Panasonic offers RF to a new and growing market.
Forming a new key part of the Panasonic VRF line up, the Mini ECOi is compatible with the same indoor units and controls as the rest of the ECOi range.

Technical focus

· Single Phase or Three Phase power supply
· One Amp start current
· DC inverter technology combined with R410A
· Diversity ratio 50~130%
· Cooling operation to -10°C
· Compact outdoor unit 1.330 x 940 x 410mm

Cooling and Heating type Single Phase and Three Phase

For small-scale commercial and residential use.

Panasonic 2-Pipe Mini ECOi, the 2-Pipe heat pump is specifically designed for the most demanding applications. Mini ECOi is available in 5 sizes with cooling capacities ranging rom 12,1kW to 28kW and connectable up to 15 indoor units (applicable for 28kW).
An expansion from the Panasonic VRF line up, the Mini ECOi is compatible with the same indoor units and controls as the rest of the ECOi range.

Wide design operation conditions.

The operating range for heating operation is to -20°C, the cooling range is to -10°C. The remote controller temperature setting offers a range from 16°C to 30°C.


Heating and cooling solutions

Perfect solution for small shops, offices, large residential properties or condominiums where outdoor space is minimal, as well as larger, commercial applications including hotels or larger office buildings where the outdoor system should not intrude on the exterior décor.

Bluefin (only for 8-10HP)

Bluefin treatment protect the coil itself against corrosion, ensuring that the unit continues to function with the same outstanding thermal exchange efficiency and performance over time.

New Inverter compressor (only for 8-10HP)

Thanks to its top class COP, high heat exchange performance due to its wide heat exchanger and extensive Inverter compressor range, which provides a high efficiency operation by the load, it is also incredibly energy saving.

Silent mode

Maximum 7 dB(A) can be reduced by setting. External input signal is also available. In case of the installation at Condominium, quiet operation performance is important, especially in night time.

Increased piping length for greater design flexibility

Adaptable to various building types and sizes.
Actual piping length: 120m (equivalent piping length 140m).
Maximum piping length: 150m.

Flexible pipework

Up to 15 indoor units per system

Detalii produs
8-10 HP
