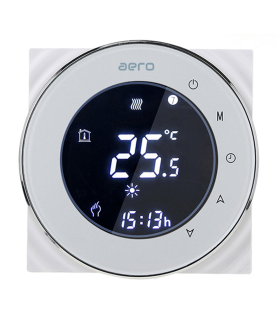

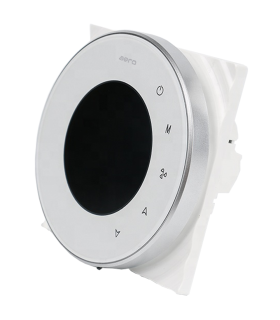

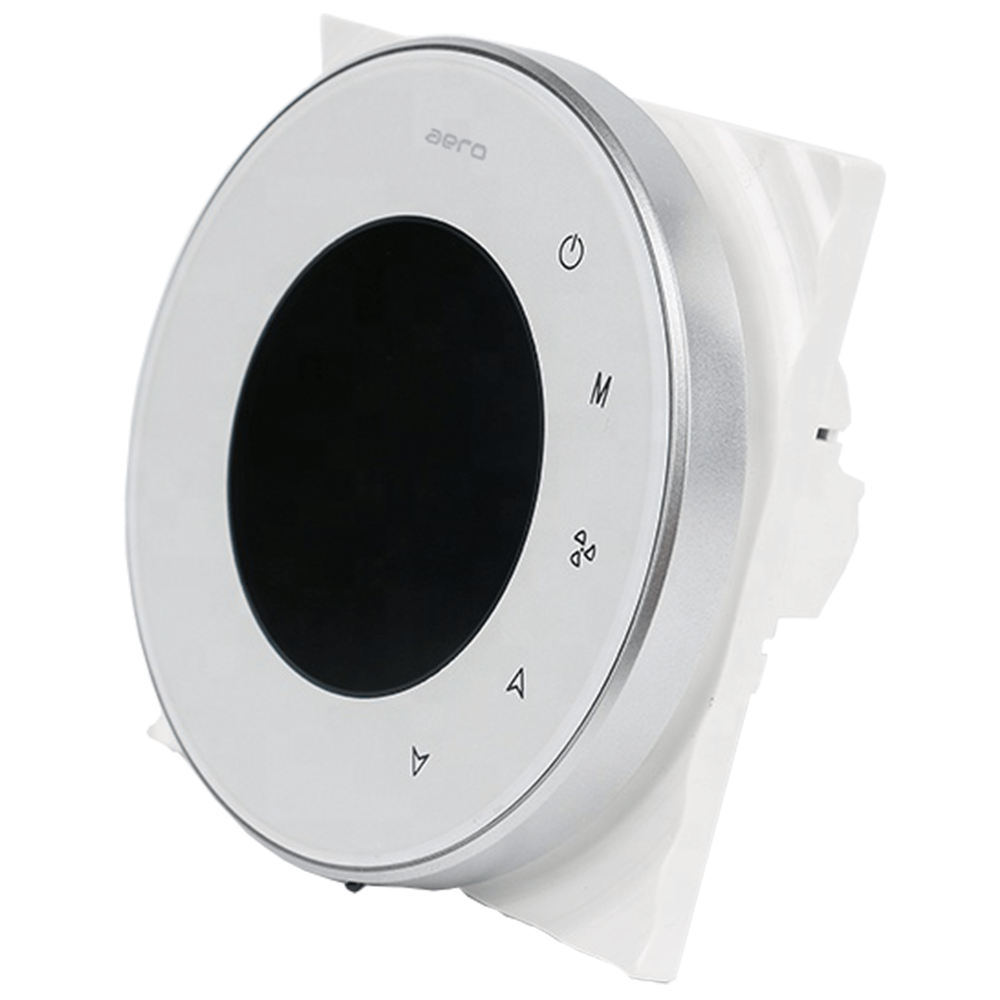

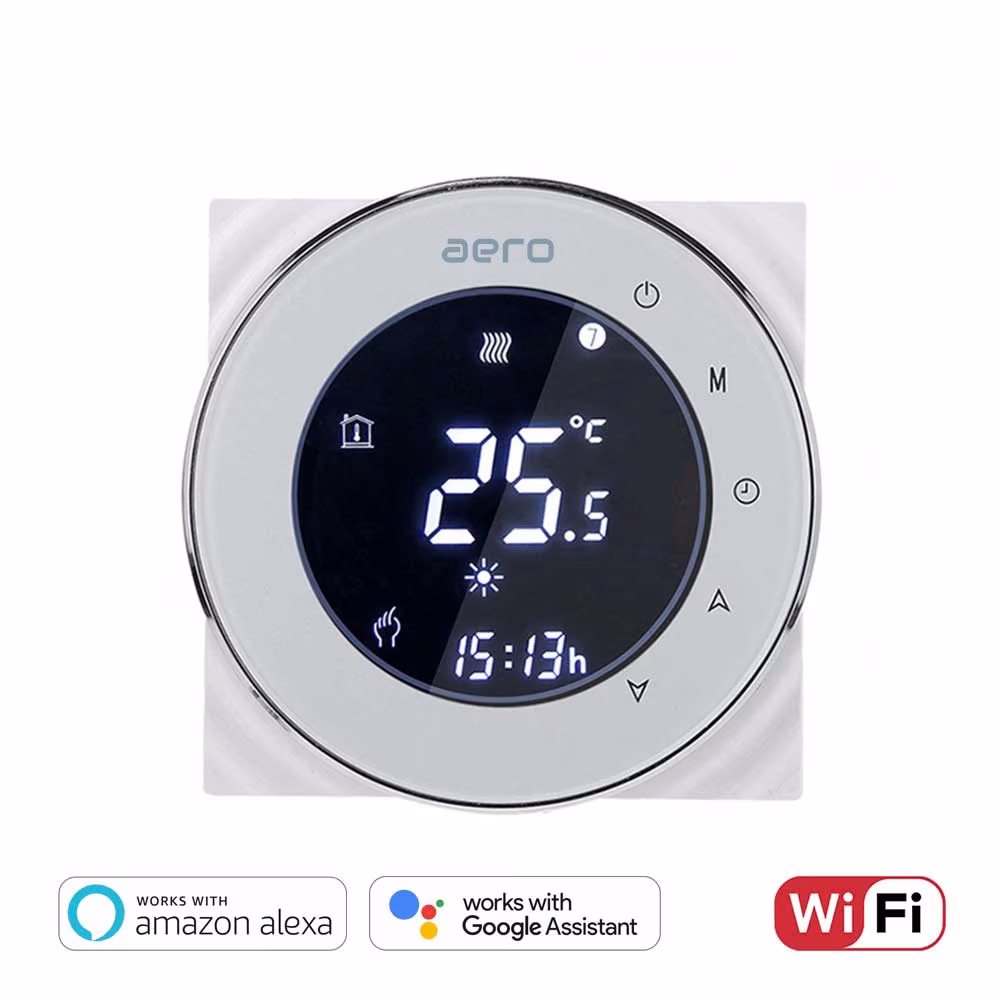

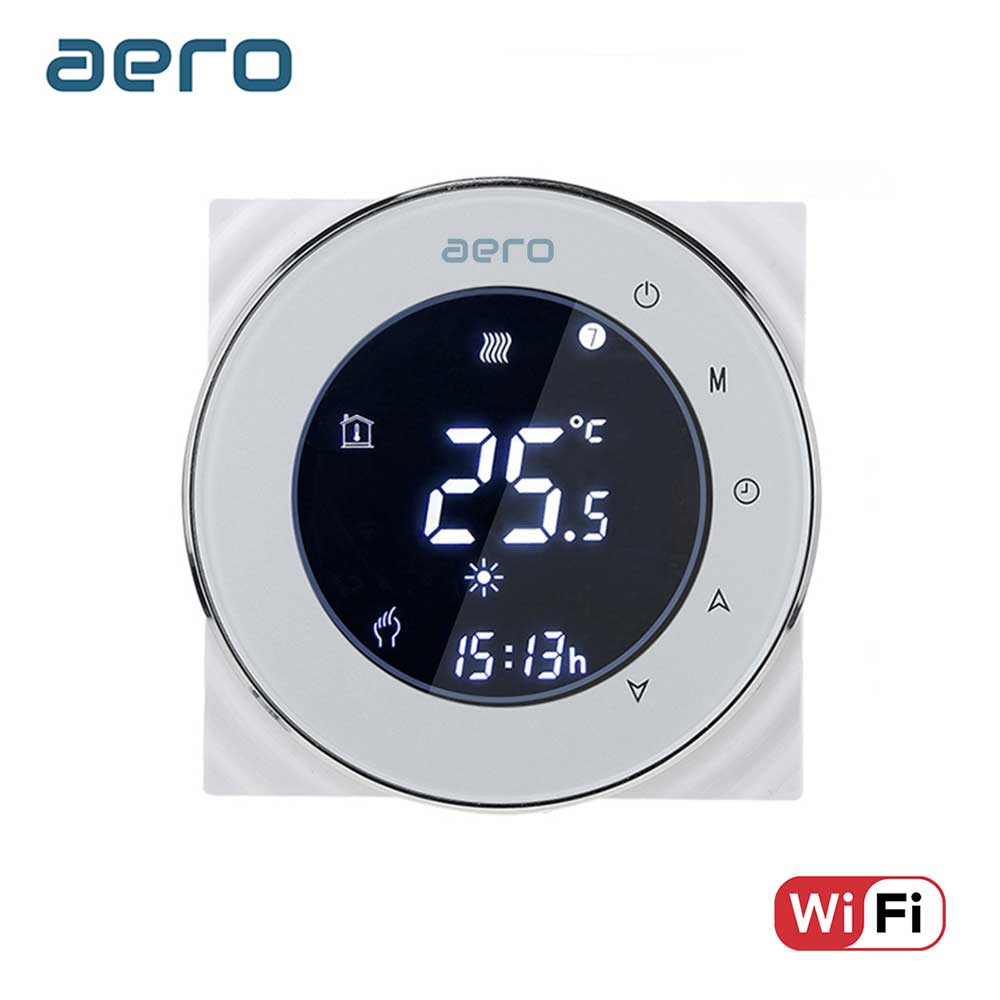

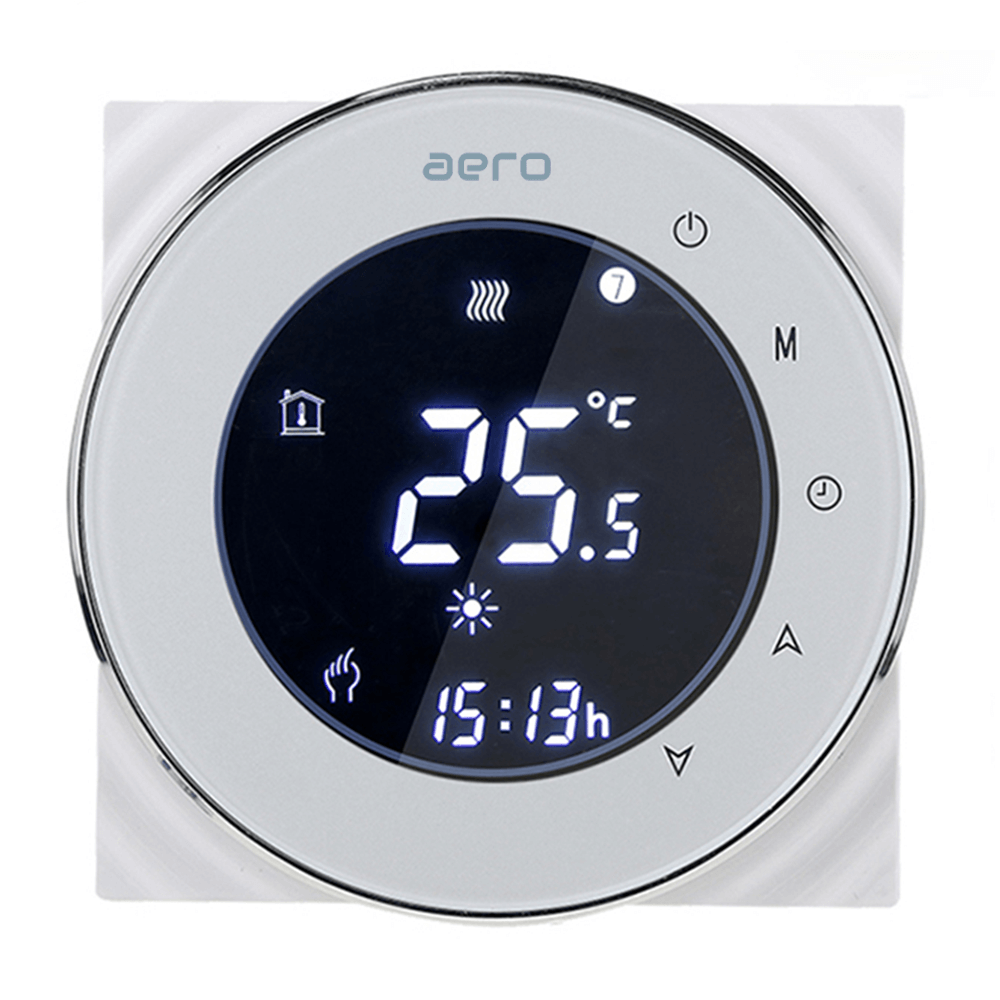

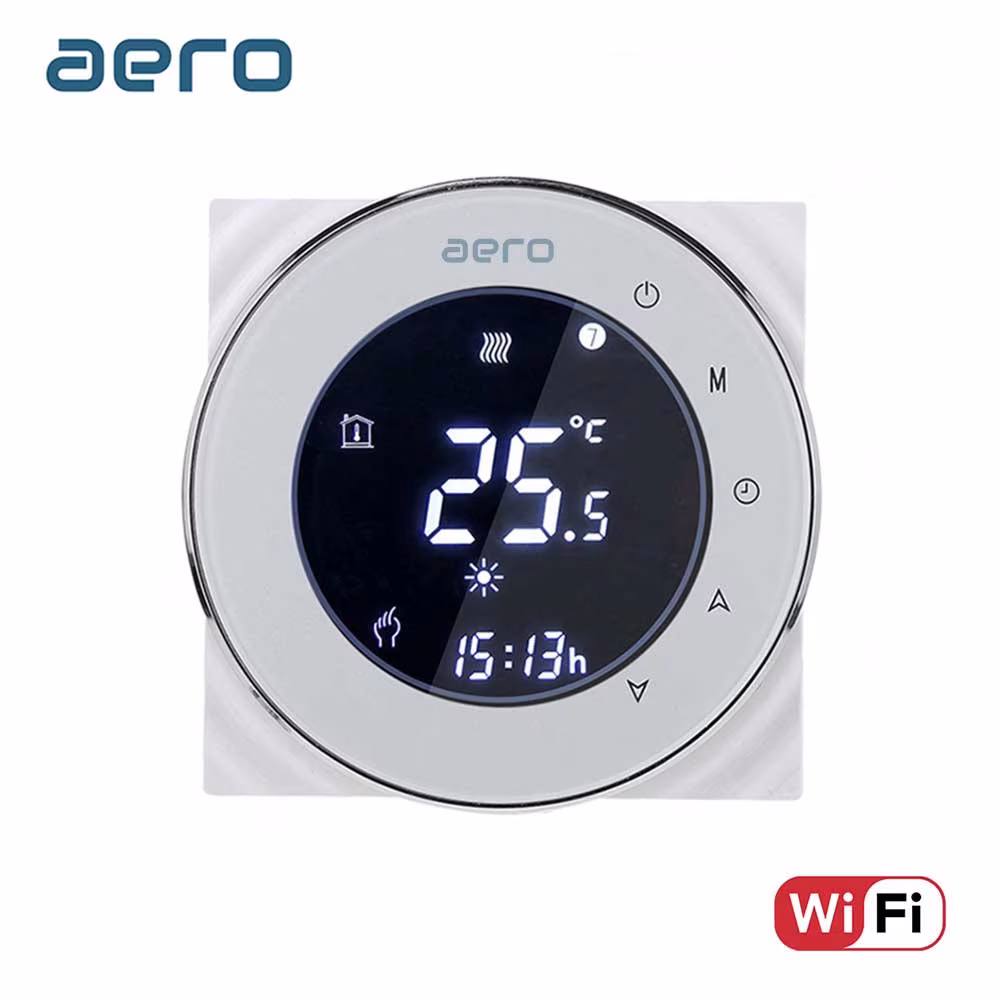

Termostat AERO THP6000ALW White, Wi-Fi, 2 tevi, pentru Ventiloconvector, Incalzire, Racire, Ventilatie, Smart, Programabil, Alb
Termostat AERO, Wi-Fi, Smart
cod: AERO THP6000ALW White
Garantie: 24 Luni
Oferta speciala
349 lei
400 lei
-51 lei
Livrare in 1-3 zile pentru produsele din stoc
Poti adauga si:
Informatii suplimentare si pareri Termostat AERO THP6000ALW White, Wi-Fi, 2 tevi, pentru Ventiloconvector, Incalzire, Racire, Ventilatie, Smart, Programabil, Alb
Descriere
ABOUT YOUR THERMOSTATS
The THP-6000 range has been developed to control electric underfloor, water heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.
FEATURES
On Appearance
- Negative black screen will bring you to a secret world.
- 51mm round display area helps to protect your eyes.
- Glass or Acrylic Lens is for your selection.
- Touch buttons to make simple operations.
- Amazing Silver Frame opens your modern life.
- The visiable thickenss above the wall is only 11mm.
- Rotations to connect gives you easy installations.
- 86mm hidden box and european 60mm round box is suitable.
- White, black or gold housing creates your colorful life.
On Functionality
- Powerfull functions are available such as BACnet / Modbus / Wi-Fi, etc
- 0.5°C Accuracy keeps temperature within the level you set.
- ℃ & ℉ is changeable.
- Data memory when power is off.
- 5+2 six periods programmable maximize comfort and economy.
DIMENSION
TECHNICAL DATA
Power Supply: 95 ~ 240 VAC, 50 ~ 60HZ
Current Load：16A (electric heating)
Sensor: NTC3950, 10K
Accuracy: ±0.5℃ or ±1℉
Set Temp. Range: 5 -35 ℃
Dispaly Temp. Range: 5 ~ 99 ℃
Ambient Temp.: 0 ~ 45 ℃
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.: -5 ~ 45 ℃
Power consumption: <1.5W
Timing Error: < 1%
Shell Material: PC +ABS (Fireproof)
Shell Material: PC +ABS (Fireproof)

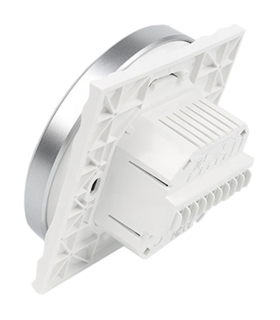

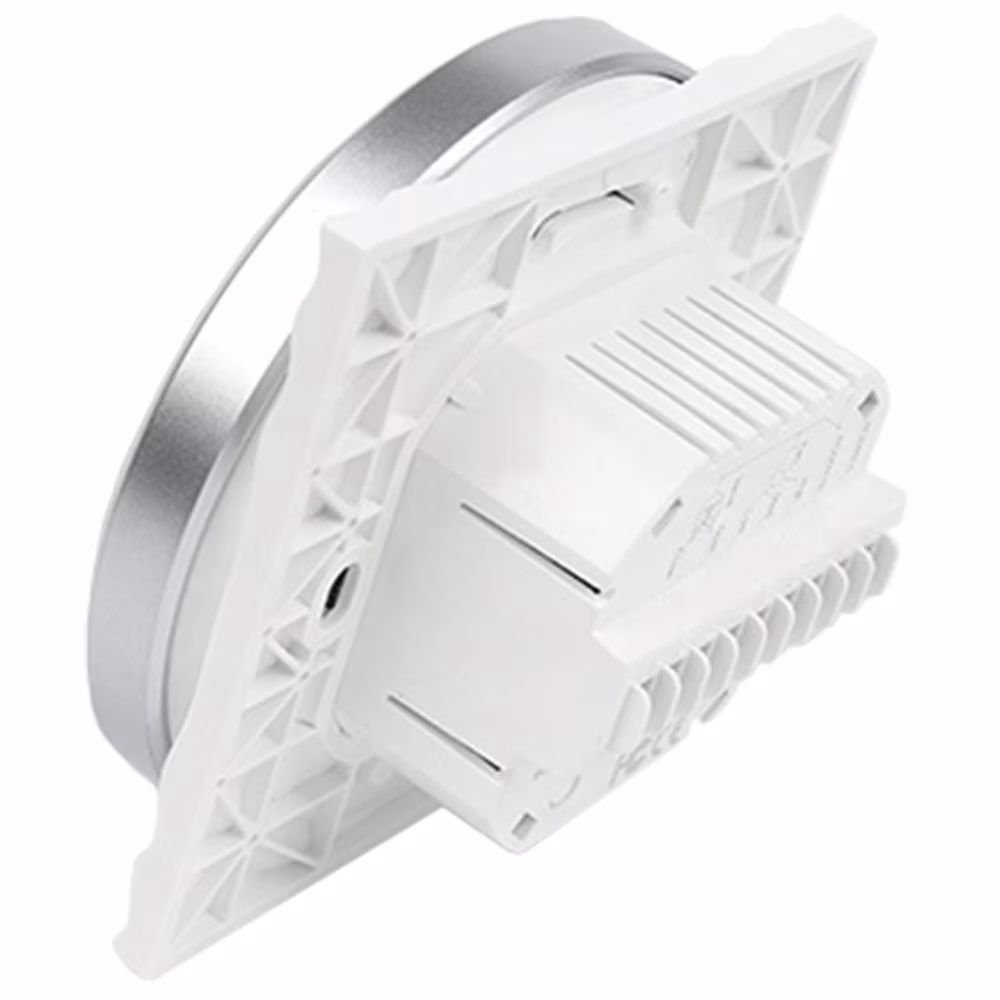

Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection class IP30
Buttons: Capactive Touch Buttons
WIRING
HOME SCREEN QUICK REFERENCE
INSTALLATION
Your thermostat is suitable for installation whitin a standard 86 mm pattress box or European 60 mm pattress box.
Step 1. Keep power off. See Fig 1.

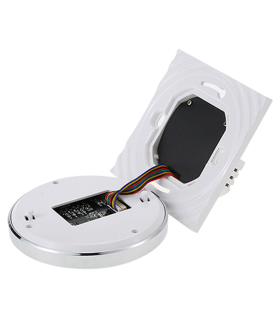

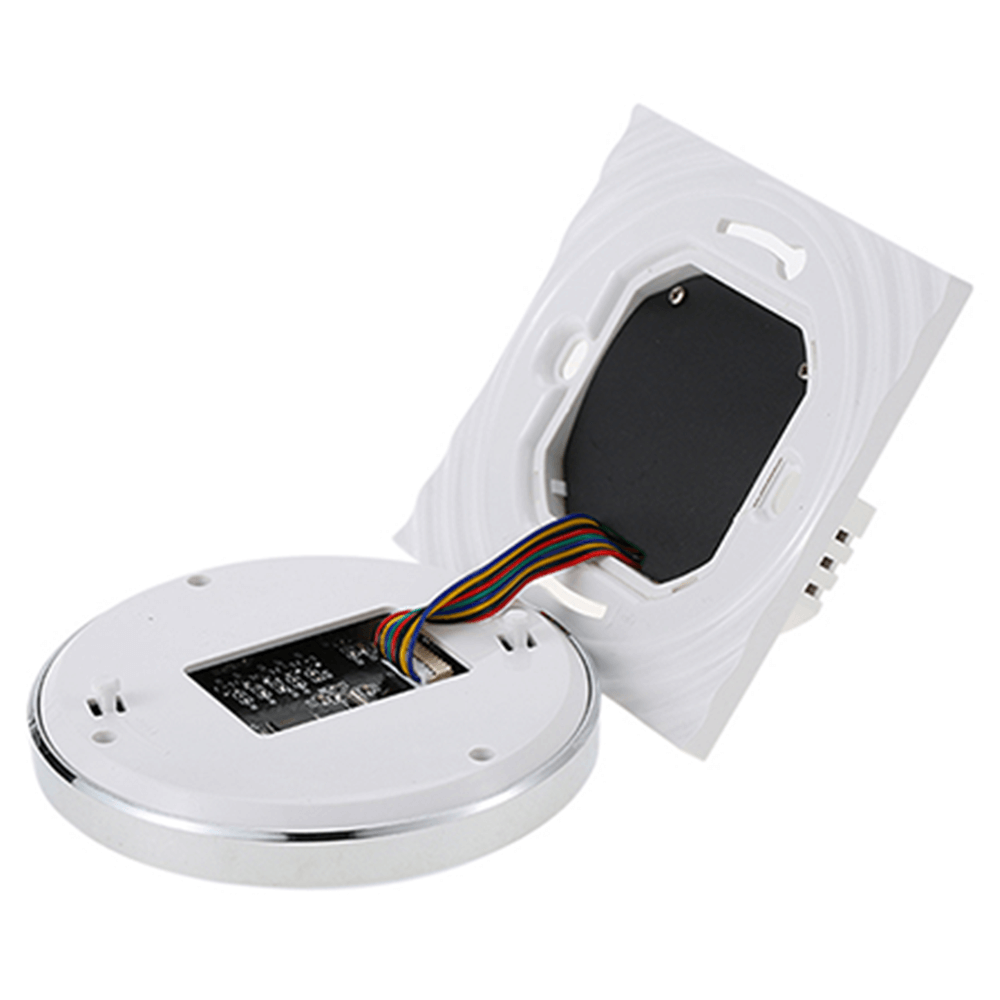

Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2.
Step 3. Connect power supply, load into the appropriate terminals. (see “Wiring your thermostat” for details and Fig 3).
Step 4. Fix the mounting plate into the wall with screws in the box.See Fig 4.
Step 5. Fasten body of thermostat and the mounting plate through rotating. See Fig 5.
Step 6. Installation complete. See Fig 6.
AERO THP6000ALW White
| Producator | Aero |
| Tip produs | Wired (cu fir) |
| Domeniu Utilizare | Ventiloconvectoare |
| Tehnologie Wi-Fi | Da |
| Garantie | 24 Luni |
| Culoare | Alb |
Manual Wi-Fi THP6000ALW FCU
