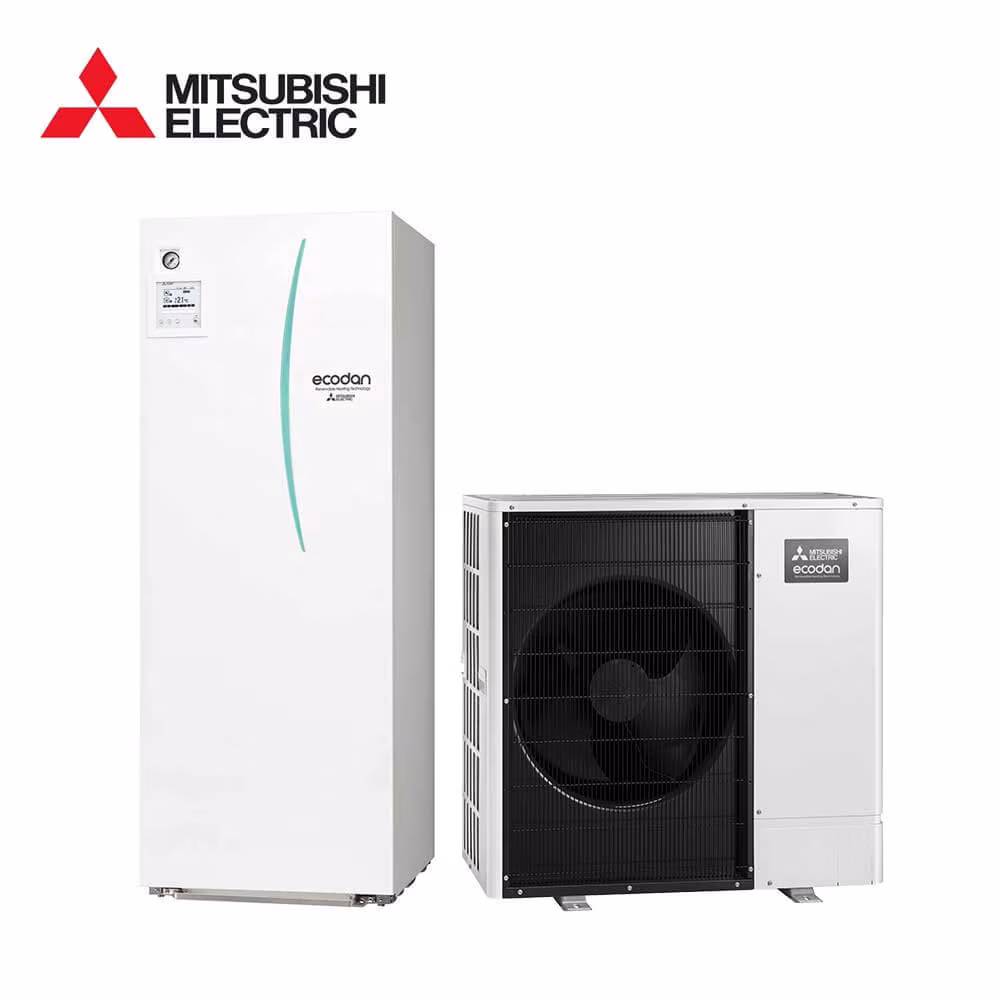

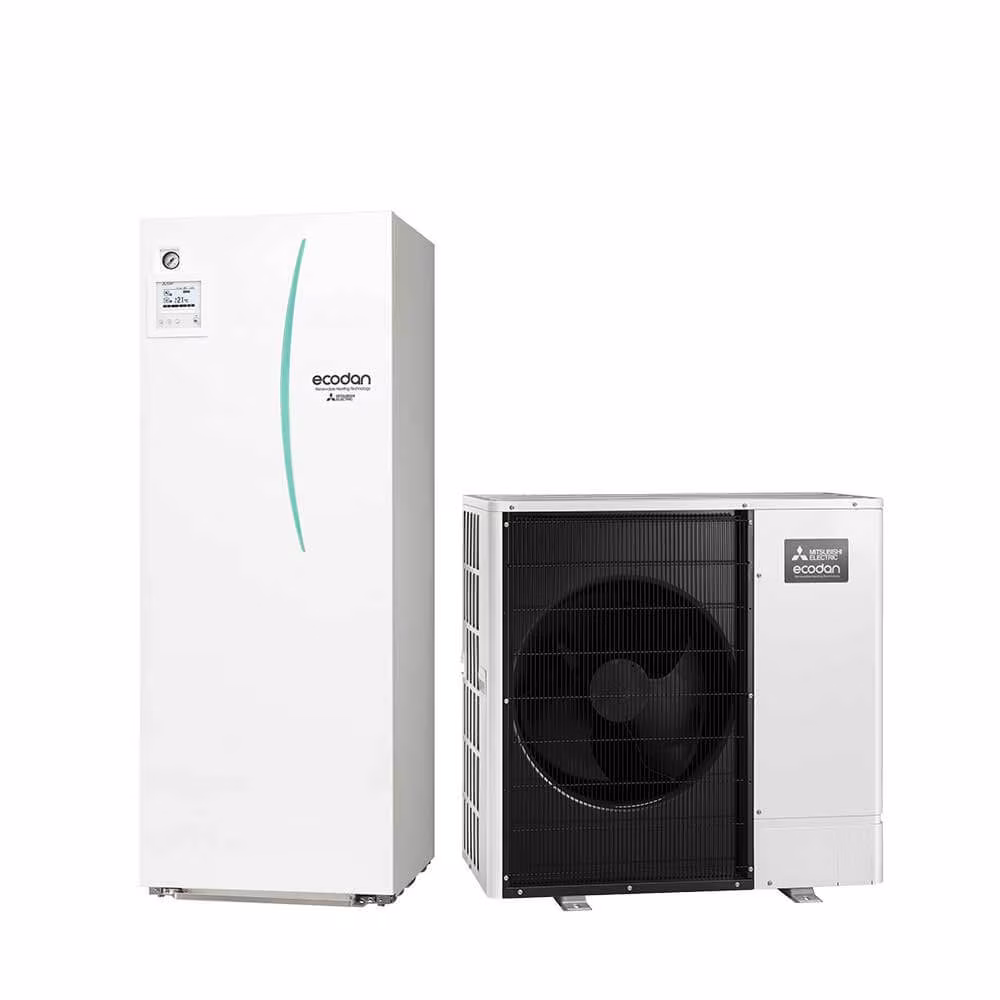

Pompa de Caldura Aer Apa Mitsubishi Electric Zubadan ECODAN PUHZ-SHW80VAA / ERST20C-VM2D 8 kW 230V Boiler ACM

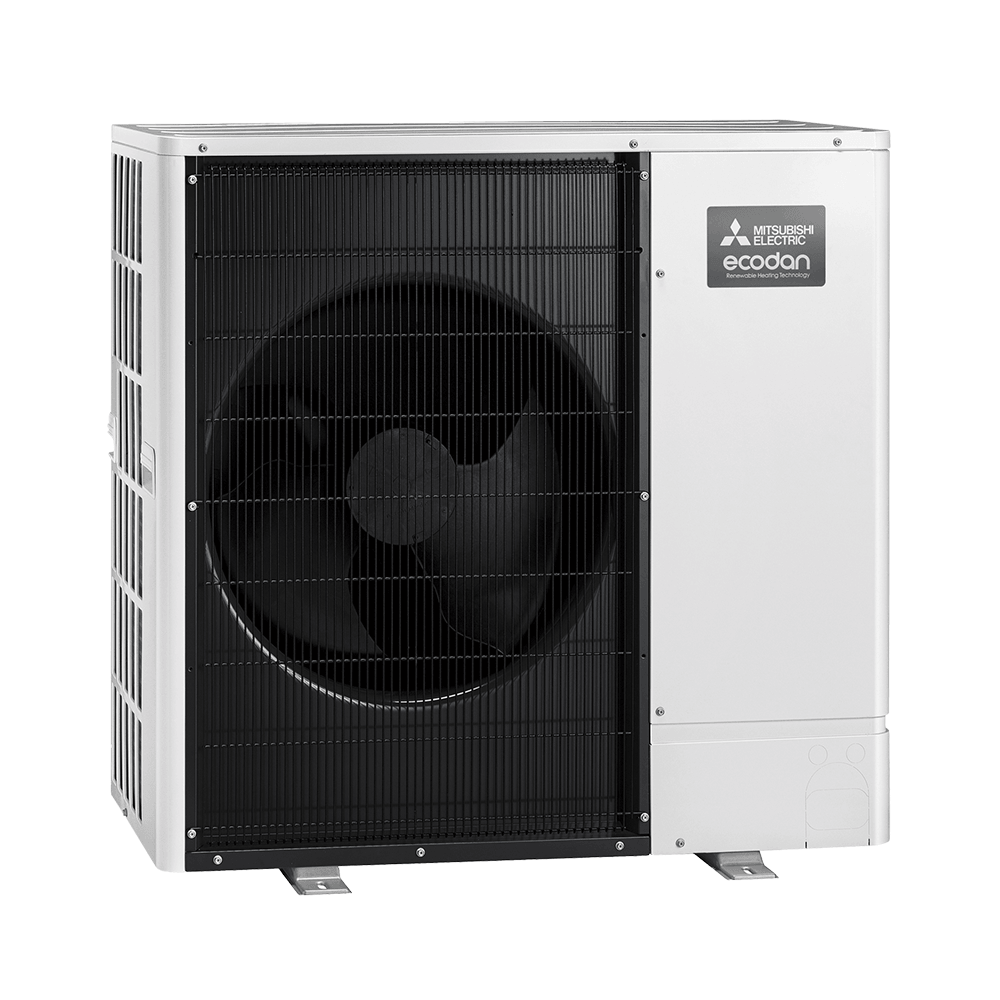

ZUBADAN Series

The ZUBADAN Series incorporates an original Flash Injection technology that improves the already high heating capacity of the system. This new member of the series line-up ensures comfortable heat pump-driven heating performance in cold regions.

Improved Heating Performance

Mitsubishi Electric’s unique “Flash Injection” circuit achieves remarkably high heating performance. This technology has resulted in an excellent heating capacity rating in outdoor temperatures as low as -15°C, and the guaranteed heating operation range of the heating mode has been extended to -25°C. Accordingly, the heat-pump units of the ZUBADAN Series are perfect for warming homes in the coldest of regions.

Enhanced Comfort

The Flash Injection circuit improves start-up and recover from the defrosting operation. A newly introduced defrost operation control also improves defrost frequency. These features enable the temperature to reach the set temperature more quickly, and contribute to maintaining it at the desired setting.

ZUBADAN Defrost Control and Faster Recovery from Defrost Operation

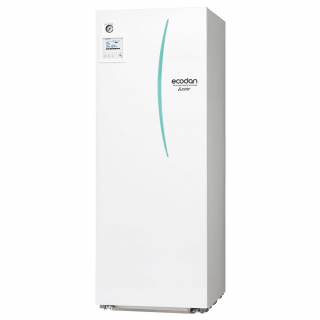

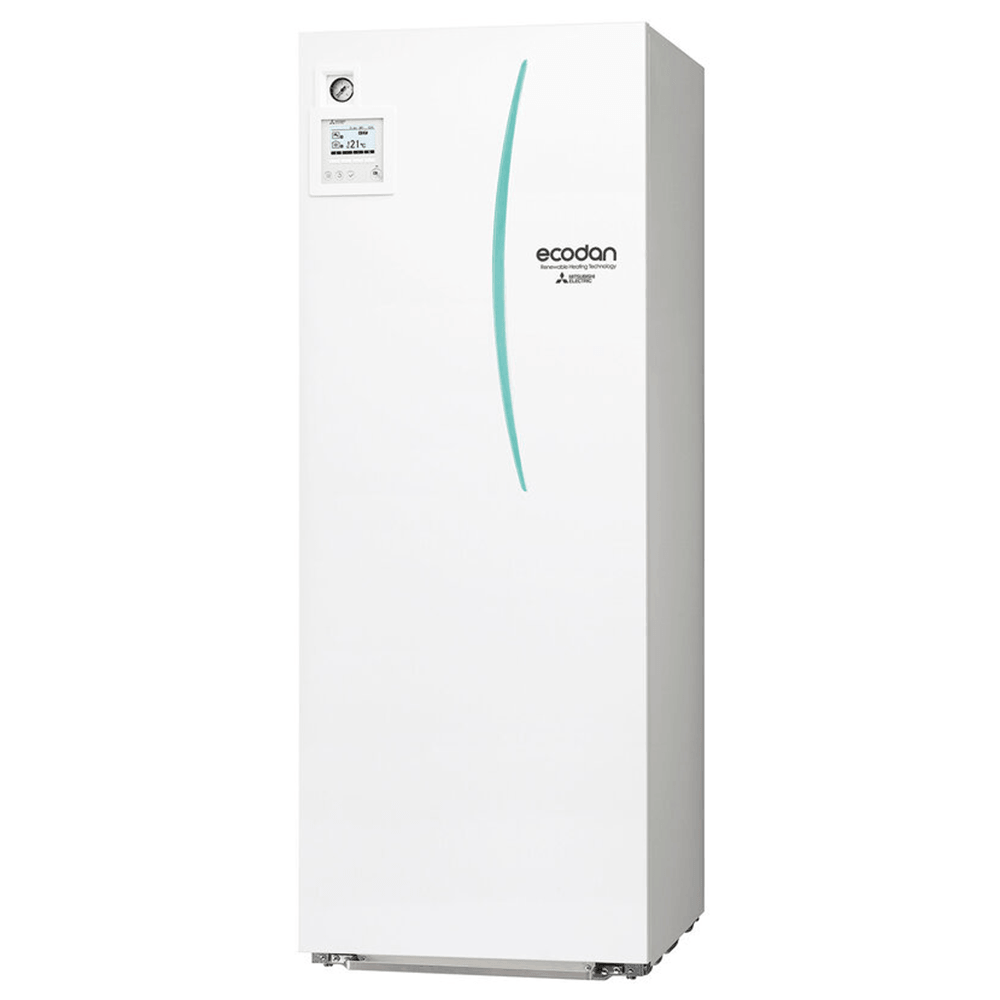

Cylinder for Ecodan ATW Hydronic and Split Units

ECODAN CYLINDER

The Ecodan Cylinder offers a highly adaptable heating solution for retrofit or new builds. Designed specifically by Mitsubishi Electric to integrate with the Ecodan Split Air Source Heat Pump Range, the cylinder provides improved performance and faster heat-up times through the use of plate heat exchanger technology. Fast commissioning via an SD card and energy monitoring functions are included.

Key Features

• Simple graphical control

• Optional 2-Zone Space Heating Control

• Scale Trap Technology

• Floor Dry-Up Mode

• Pre-plumbed and wired for faster installation

• SD card commissioning

• Energy monitoring as standard

• Compatible with home automation via Modbus

• BMS compatible
